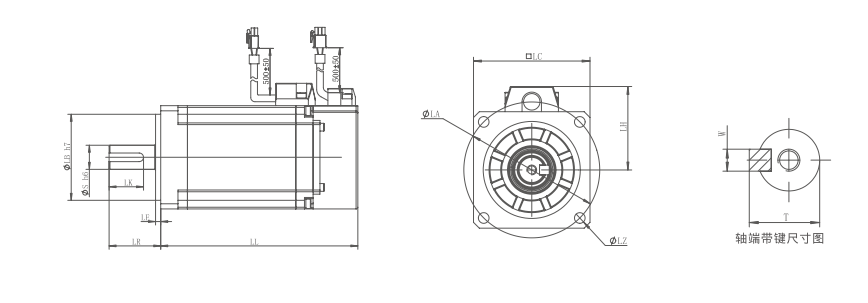

伺服电机（安装尺寸）
| 型号 | 尺寸：(mm) | |||||||||||
| BSM- | LL | LC | LH | LA | LZ | LB | LE | S | LR | LK | W | T |
| M04A01CE | 79.1(109.6) | 40 | 31 | 46 | 2-φ4.5 | 30 | 2.5 | 8 | 25 | 16 | 3 | 9.2 |
| A06A02CE | 95(135) | 60 | 43 | 70 | 4-φ5.5 | 50 | 3 | 14 | 30 | 20 | 5 | 16 |
| A06A04CE | 115(155) | 60 | 43 | 70 | 4-中5.5 | 50 | 3 | 14 | 30 | 20 | 5 | 16 |
| A08A07CE | 126(165) | 80 | 53 | 90 | 4-φ6.5 | 70 | 3 | 19 | 35 | 25 | 6 | 21.5 |
| 注：带()表示带伺服制动器的值 | ||||||||||||

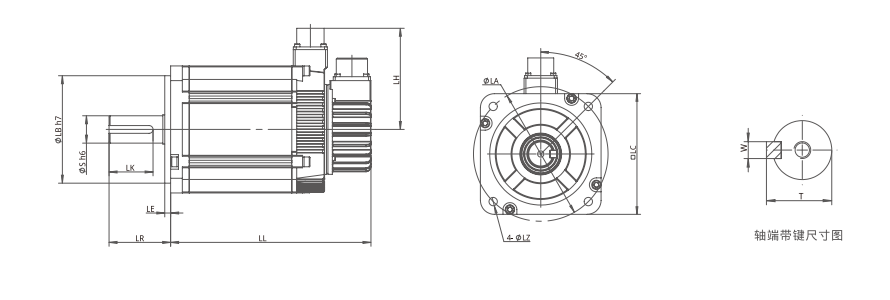

| 型号 | 尺寸：(mm) | |||||||||||
| BSM- | LL | LC | LH | LA | LZ | LB | LE | S | LR | LK | W | T |
| M10A10CE | 153(194) | 100 | 98 | 115 | 4-Φ9 | 95 | 5 | 22 | 45 | 32 | 6 | 24.5 |
| M10A20CE | 198(239) | 100 | 98 | 115 | 4-Φ9 | 95 | 5 | 22 | 45 | 32 | 6 | 24.5 |
| M13B10CC | 155(184) | 130 | 110.5 | 145 | 2-φ9/2-M/0 | 110 | 4 | 22 | 40 | 32 | 8 | 25 |
| M13B15CB | 179(205) | 130 | 110.5 | 145 | 2-Φ9/2-M/0 | 110 | 4 | 22 | 40 | 32 | 8 | 25 |
| M13B20CC | 179(205) | 130 | 110.5 | 145 | 2-φ9/2-M/0 | 110 | 4 | 22 | 40 | 32 | 8 | 25 |
| M13B08CB | 145(178) | 130 | 105 | 145 | 4-φ9 | 110 | 6 | 19 | 58 | 28 | 5 | 21 |
| M13B13CB | 160(193) | 130 | 105 | 145 | 4-Φ9 | 110 | 6 | 22 | 58 | 28 | 6 | 24.5 |
| M13B18CB | 178(211) | 130 | 105 | 145 | 4-Φ9 | 110 | 6 | 24 | 58 | 29 | 7 | 27 |
| M18B29DB | 176(224) | 180 | 136 | 200 | 4-Φ13.5 | 114.3 | 3.2 | 35 | 79 | 65 | 10 | 38 |
| M18B44DB | 200(248) | 180 | 136 | 200 | 4-Φ13.5 | 114.3 | 3.2 | 35 | 79 | 65 | 10 | 38 |
| M18B55DB | 237(285) | 180 | 136 | 200 | 4-Φ13.5 | 114.3 | 3.2 | 42 | 113 | 96 | 12 | 45 |
| M18B75DB | 283(331) | 180 | 136 | 200 | 4-φ13.5 | 114.3 | 3.2 | 42 | 113 | 96 | 12 | 45 |
| 注：带()表示带伺服制动器的值 | ||||||||||||
